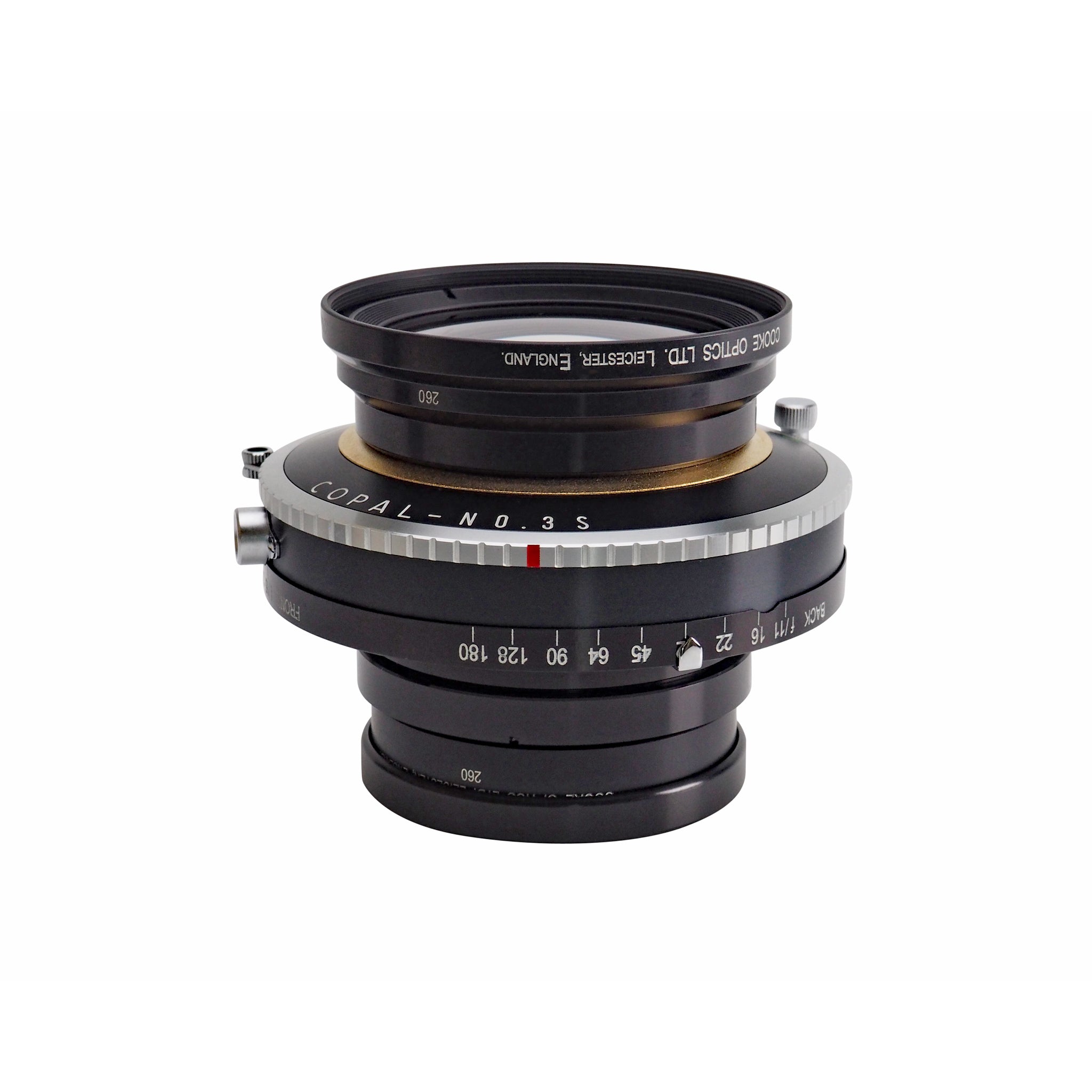

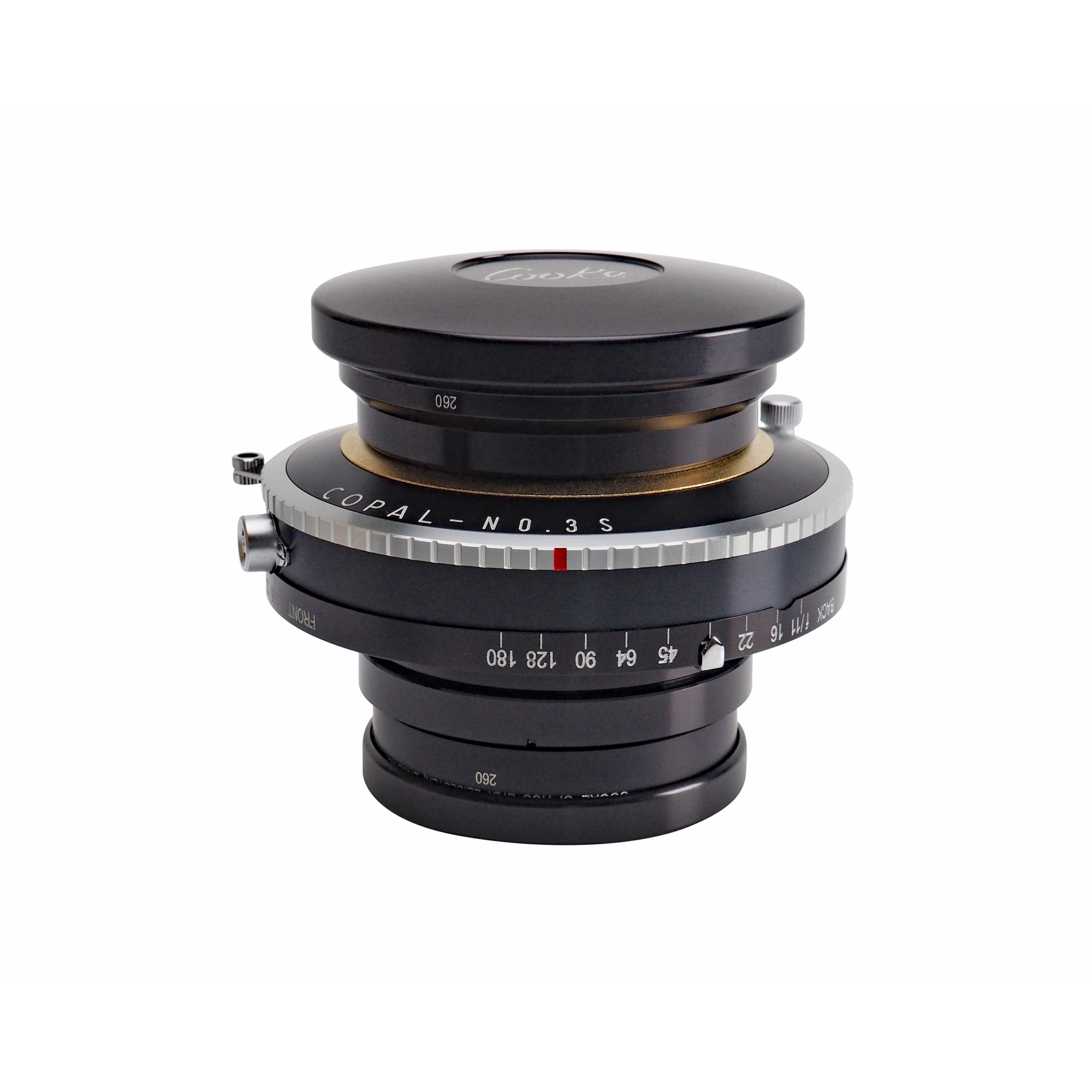

The same classic lines, format and focal length combinations as the original Cooke Series XV lens. Cooke's redesign of this still popular classic maintains the favourite characteristics of the original lens while incorporating new features requested by contemporary photographers:
- For 8 x 10 large format photography
- Focal lengths: 645mm (front cell only), 476mm (back cell only), 311mm (front + back).
- Colour balanced for today's film stocks.
- Renowned Cooke multi-coating. No flaring. No ghosting.
- Dynamic Scale Ring. Three easily readable f stop scales on one dial-able ring for the three lens combinations (front + back, front only, back only). The ring easily attaches to any recent vintage Copal #3s shutter in good condition.
- Combine your first XVa lens with a second XVa lens for two additional focal length combinations: 365mm (front + front) and 271mm (back + back).
| Manufacturer SKU | XVa3s |
|---|---|
| Brand | Cooke |
| Lens Type | Specialist |
| Lens Coverage | 8x10" |
| Lens Focus Mechanism | Manual |
| Filter Size - Front | 77mm screw in Front Cell |
| Filter Size - Back | 62mm screw in Back Cell |
| Filter Size - Shutter Front | 62mm screw in Gold Ring |
| External Finish | Semi-gloss black anodised, with textured gold bevel ring |
| Dimensions | 85mm (Front + Back) |
| Weight | 930g |
| Cofiguration | Back + Front | Back | Front |
|---|---|---|---|
| Focal Length | 311mm | 476mm | 646mm |
| Aperture Range | f6.8 to f90 | f11 to f90 | f16 to f90 |
| Diagonal | 325mm | 325mm | 325mm |
| Angle Of View | 55 ° | 38 ° | 28 ° |
| Maximum Usable Image Circle | 381mm | 452mm | 452mm |
| Angle of View (Use Aperture) | 63 ° | 51 ° | 39 ° |
| Maximum Usable Image Circle at 10 ft and closer | 420mm | 452mm | 452mm |
| (Use Aperture) - Max. UIC <10ft | (f16) ° | (f32) ° | (f32) ° |
| Flange Focal Distance | 312mm | 542mm | 733mm |
